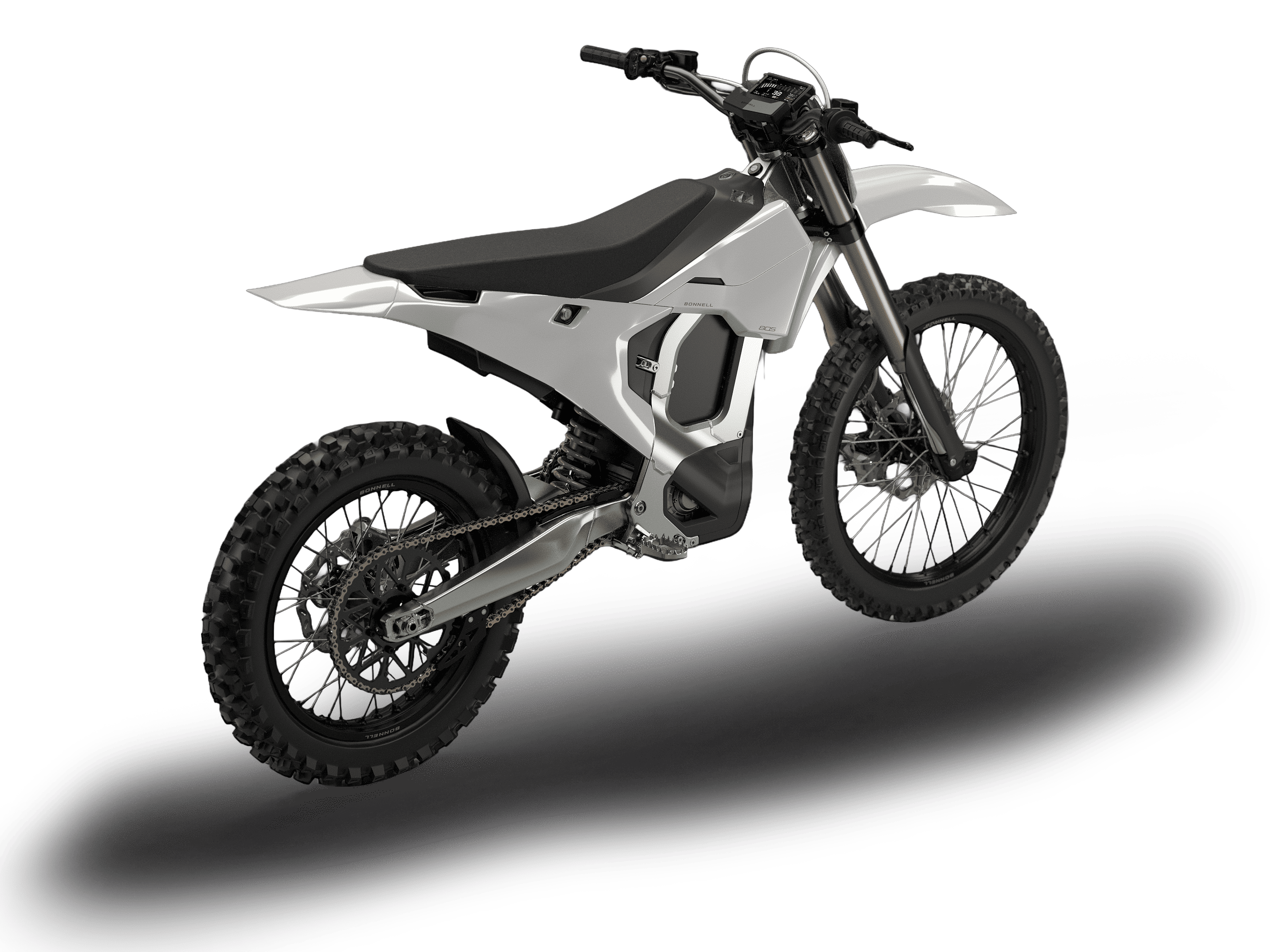

Bonnell 805

Power: 56hp (42kW) peak

Battery (standard):
Core Battery 3.9kWh
Race Battery 4.7kWh
(Aftermarket Option)

Speed: 80+ mph (130+ km/hr)

Weight: 211 lb (96 kg)

Wheelbase: 52.8 in (1340 mm)

Brakes: Bonnell Forged brakes

Frame: Forged aluminium

Chain: 428

Specifications are preliminary and subject to change without notice.

Expected Q2 2026

Power: 87 hp (65 kW) peak

Battery:
Core Battery 5.6 kWh
Race Battery 6.7 kWh
(Aftermarket Option)

Speed: 90+ mph (145+ km/h)

Weight: TBD

Wheelbase: 56.5 – 57.6 in (1435 – 1465 mm)

Brakes: Magura Forged MX brakes

Frame: Forged aluminium

Chain: 520 (114 – 116 links)

Specifications are preliminary and subject to change without notice.

Expected Q4 2026

Bonnell Specs

KEY SPECIFICATIONS (Motos)

Bonnell 805

Bonnell 902

Power

56hp (42kW) peak

87hp (65kW) peak

Battery Options

Core Battery: 3.9kWh
Race Battery: 4.7kWh

Sprint Battery: 4.7kWh (15lb/7kg weight savings)
Core Battery: 5.6kWh
Race Battery: 6.7kWh

Speed

80+ mph (130+ km/hr)

90+ mph (145+ km/hr)

Suspension

Custom SIRRIS 245mm front & rear

Enduro: 285mm front & rear
Race: 310mm front & 320mm rear

Weight

211lb (96kg)

TBD

Brakes

Bonnell Forged brakes

Magura Forged MX brakes

Frame

Forged aluminum

Ride modes

5 customisable + reverse

Display

3 layouts + lap timer

Special functions

Regen, E-clutch, TC, Boost, Wheelie

Phone App

Bonnell App

Bonnell 805

Power: 56hp (42kW)
Battery: Core 3.9kWh / Race 4.7kWh
Speed: 80+ mph
Suspension: SIRRIS 245mm front & rear
Weight: 211lb (96kg)
Brakes: Bonnell Forged
Frame: Forged aluminum
Ride modes: 5 + reverse
Display: 3 layouts + lap timer
Special: Regen, E-clutch, TC, Boost, Wheelie
App: Bonnell App

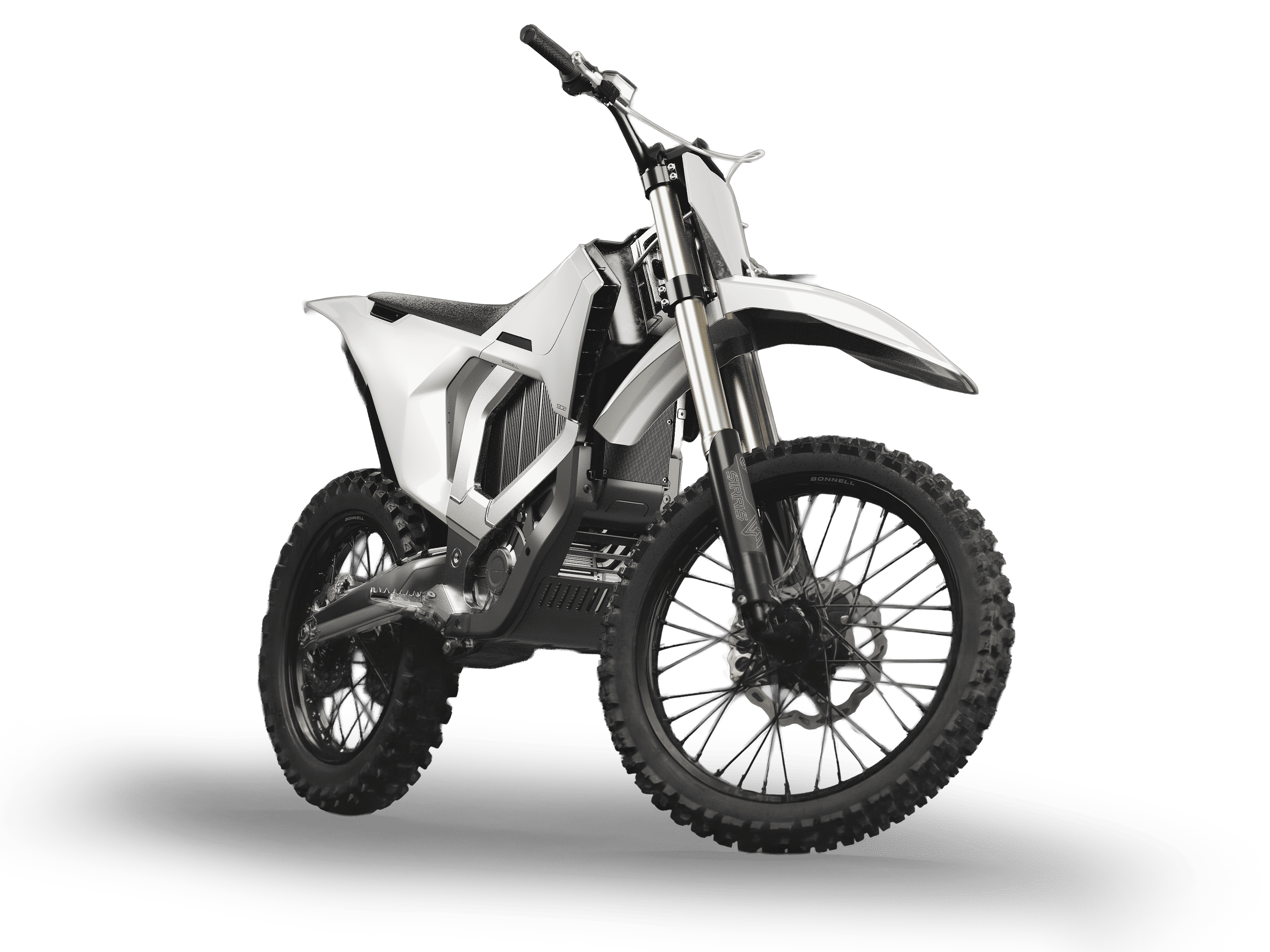

Bonnell 902

Power: 87hp (65kW)
Battery: Sprint / Core / Race
Speed: 90+ mph
Suspension: Enduro & Race setup
Weight: TBD
Brakes: Magura Forged MX
Frame: Forged aluminum
Ride modes: 5 + reverse
Display: 3 layouts + lap timer
Special: Regen, E-clutch, TC, Boost, Wheelie
App: Bonnell App

Shared DNA

Tech Within Reach

Power, data and control at your fingertips With multiple display views and real-time system data,you're always in sync with your e-Moto performance.

The Joy-Con controller allows seamless navigation through display options, adjustment to ride modes,quick access to ride statistics and customization of the trigger finger throttle.

Master Every Terrain

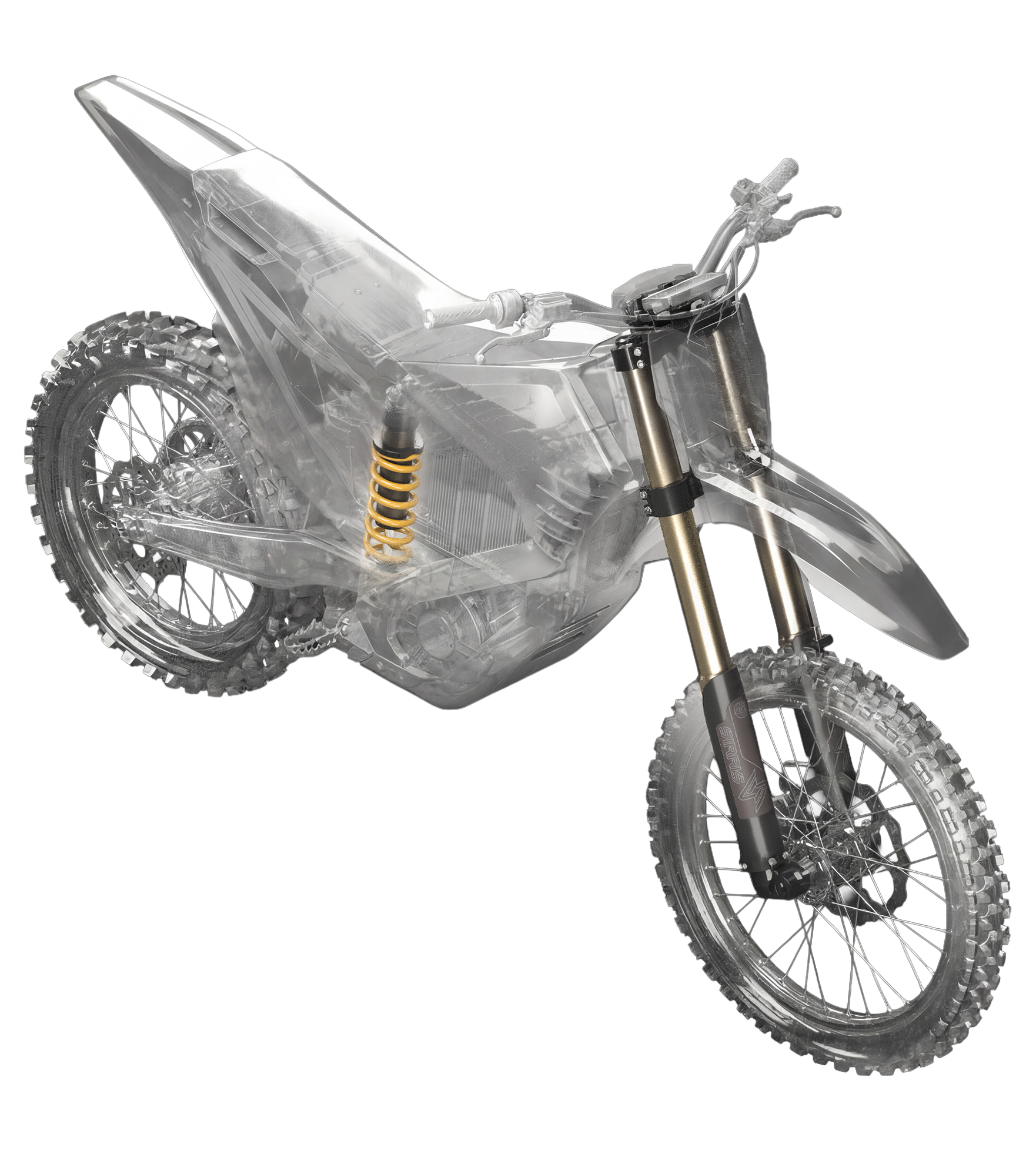

The 805 delivers precise, confidence-inspiring control with SIRRIS F43 forks and an R46 rear shock, offering 245 mm of balanced front and rear wheel travel.

The 902 steps things up with two suspension options, an Enduro setup with F43 / R46 components and 285 mm of travel, or a Race setup with full-size SIRRIS F48 forks and R50 shock delivering 310 mm front and 320 mm rear travel.

Both models feature symmetrical closed-cartridge forks for consistent, fade-free damping, dual oil circuits for optimized high- and low-speed control, and a hydraulic bump stop for smooth big-impact landings, with durable hard-anodized 7XXX-series aluminum construction.
