Bonnell 775 AM Touring
  • Bonnell 775 AM Touring
  • Bonnell 775 AM Touring
  • Bonnell 775 AM Touring
  • Bonnell 775 AM Touring
  • Bonnell 775 AM Touring
  • Bonnell 775 AM Touring
Bonnell 775 AM Touring

Bonnell 775 AM Touring

$4,890.00 USD
Bonnell 775 AM (Color): Texas Grey
Bonnell 775 AM (Size): XL

Commute. Connect. Discover.

A city-savvy bike that’s ready for anything, the 775 AM Touring is all about fuss-free fun. Built for smooth commutes, quick errands, and mountain escapes, it blends an efficient urban design with features that turn what’s everyday into something epic.

Overview

  • Intended use: Trail + Commuter
  • Front travel: 160
  • Rear travel: 150
  • Range: 18-44 mi [30-70 km]

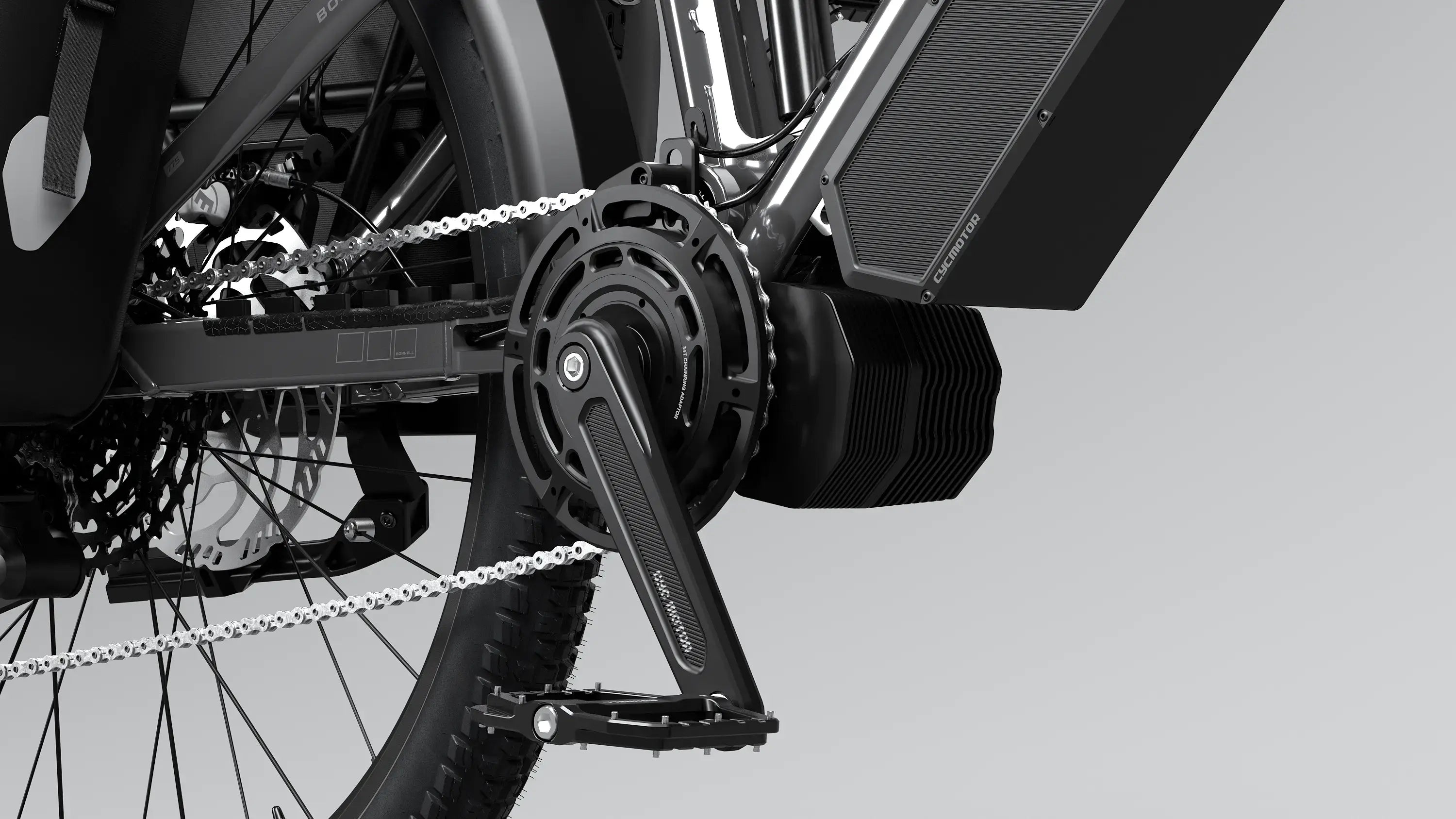

Compact Design, High Performance: The 775 AM Motor

Photon motor packs 1,200 watts of peak power and 110 Nm of torque, delivering outstanding versatility and performance. Built to Class 2 compliance, the throttle offers effortless cruising up to 20 mph (25 km/h). Riders can also switch to Class 3 mode in the Bonnell Riding app, disabling the throttle and increasing the top assisted speed to 28 mph (45 km/h). With Pedal Assist (PAS), you get a seamless mix of motor and pedal power—ready to take on any trail and define your own epic adventure.

Compact Design, High Performance: The 775 AM Motor

The 775 AM Photon motor blends power, versatility, and precision for any ride—whether you're tackling steep trails, commuting, or venturing off-road. Delivering 1,200 watts of peak power and 110 Nm of peak torque, it's built to handle diverse terrain with ease. A responsive torque sensor enhances control and traction, giving you intuitive feedback for a more connected and confident ride—not just power, but precision, too.

By default, the motor is Class 2 compliant, enabling pedal assist and throttle support up to 20 mph (25 km/h). Riders can also adjust the bike to Class 3 mode via the Bonnell Riding app, increasing the top assisted speed to 28 mph (45 km/h); however, this disables the throttle to maintain compliance. Equipped with a durable steel Narrow Wide 34T chainring, the 775 AM is built to perform and built to last.

Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

Elevate Your Ride: Intuition Display

Introducing the Intuition Display – a sleek, powerful, and ultra-responsive interface that puts control and real-time performance data right at your fingertips. Designed to connect seamlessly with your bike, it takes your riding experience to the next level.

Precision Meets Intuitive Design

At the heart of the Bonnell Intuition Display is a cutting-edge interface designed to anticipate and adapt to your every move. It provides real-time insights into speed, battery life, performance data and ride modes, giving you all the information you need at a glance. But it’s more than just a display—it’s your co-pilot, helping you ride smarter with on-the-fly adjustments that elevate your experience and keep you confidently in control.

Equipped with a built-in AirTag that seamlessly integrates with Apple devices, you can track your bike anytime, anywhere for added peace of mind.

Power Your Ride: The AM Batteries

The A-series quick-connect battery comes standard on the 775 AM in a 520Wh configuration, with the option to upgrade to a higher-capacity 780Wh version to suit your riding needs. Designed to keep you powered for longer rides, it offers a range of up to 43 miles (70 km). Whether you stick with the standard 520Wh or opt for the 780Wh upgrade, both deliver exceptional performance and range for your adventures.

Power Your Ride: The AM Batteries

All 775 AMs come standard with the 520 Wh A-Series battery, with the option to easily swap to the 780 Wh version via its versatile quick-connect feature—so you can tailor your ride for longer adventures or more power as needed. Engineered with safety, durability, and convenience in mind, the A-Series battery keeps you exploring farther and riding longer with total confidence.

Designed for security as well as performance, the A-Series battery is fully lockable, providing added peace of mind when you leave your bike unattended. It also includes a built-in safety switch to turn off the battery for secure storage, and a USB-C charge port that doubles as a power bank—perfect for charging your devices on the go. With injected molded rubber waterproof covers and a rugged aluminum casing, the battery is built to withstand any weather or terrain.

Easily removable within seconds, the battery allows you to convert your bike to a non-powered mode for restricted trails or areas.

Bonnell’s commitment to safety shines through in the A-Series battery, which includes an advanced Battery Management System (BMS) that regulates charging, monitors temperature, and prevents overheating and overcharging, ensuring peak performance and longevity. Backed by a one-year warranty, the A-Series quick-connect battery is designed to power your ride securely, wherever it may take you.

Engineered for Durability: The 775 Frame

The 775 AM boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Durolux 36x/38x fork and TriAir 3CR shock, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.

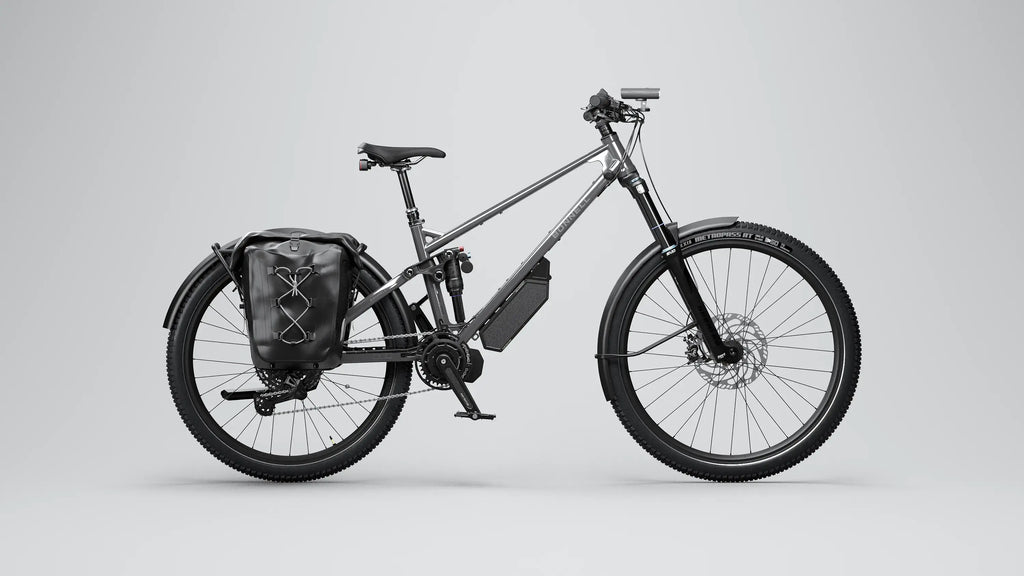

Touring Package for 775 AM

Designed to protect and empower your commute, the Touring Kit makes it easy to transition seamlessly from the road to your day. Converting your AM bike to a fully equipped touring setup is simple and quick taking less than 30 minutes and requiring only minimal tools, so anyone can do it with ease.

Stay prepared with waterproof dual bags for easy storage, wide fenders for all-weather protection, and a heavy-duty rear rack supporting up to 30 kg (66 lb). Bright Magic Shine lights and reflective Maxxis Metropass AT tires enhance visibility, while a sturdy kickstand and bell add everyday convenience.

Paired with the Photon motor’s 1200W peak power and 110 Nm torque, this setup ensures you’re ready for any commute or adventure. Cruise effortlessly or unleash full power with the Bonnell Riding app—where will your ride take you?

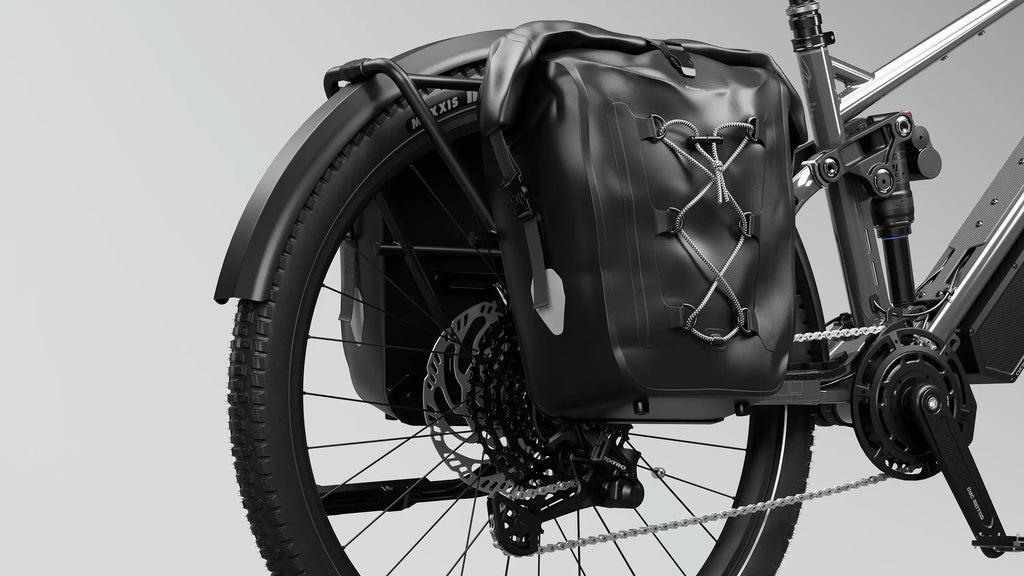

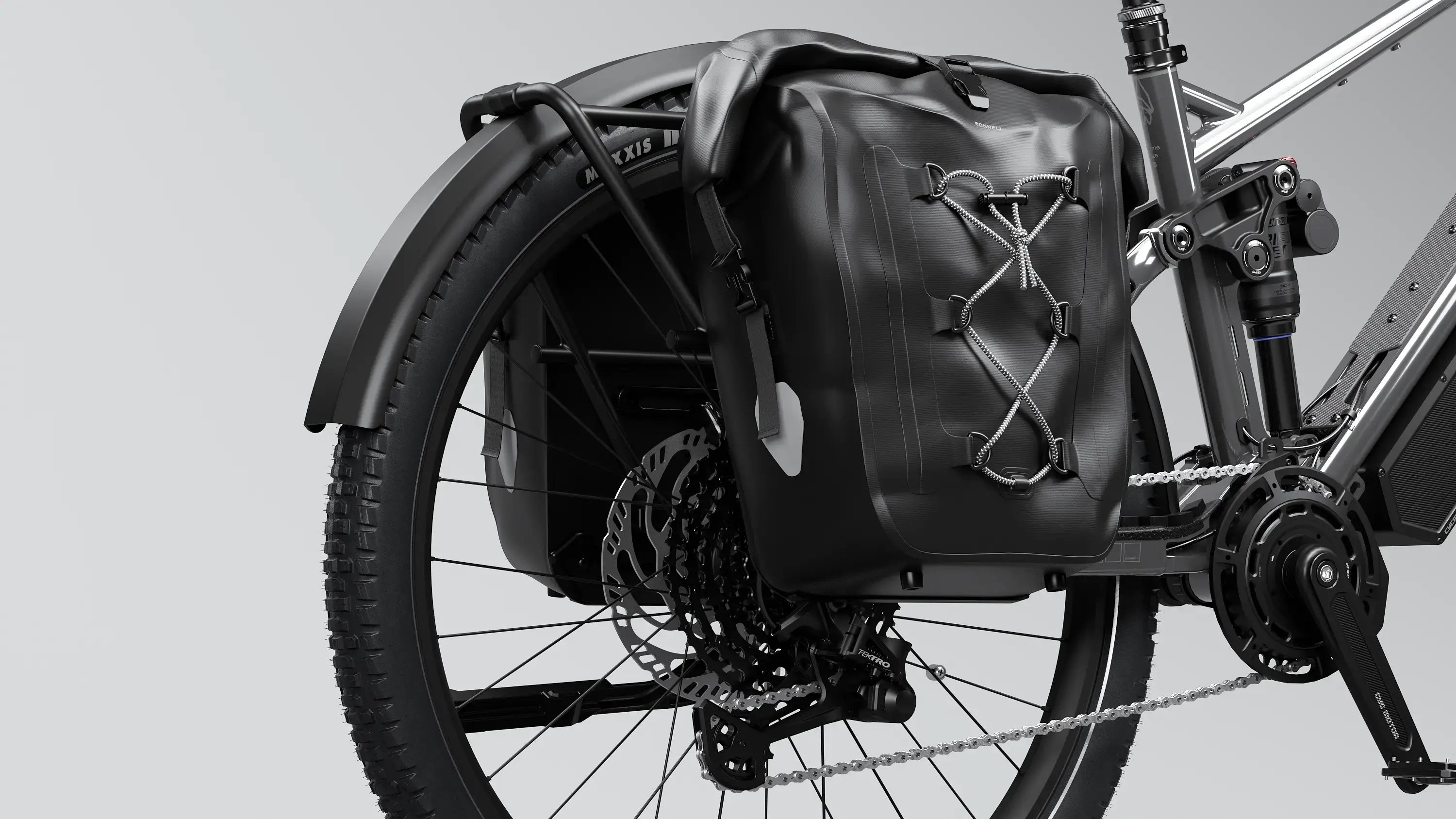

Fenders, Rack & Bag Kit

The Bonnell aluminum rack supports up to 30 kg, designed for the 775 AM's long chainstay without restricting suspension. The custom aluminum fenders (83mm wide) provide full tire coverage and integrate with the rack for added durability.

The waterproof 25L touring bags feature a roll-top closure, quick-connect system, laptop sleeve, and reflective patches, perfect for commutes or multi-day trips. Additionally, the bags come with a removable shoulder strap, adding value and practicality for easy carrying when off the bike.

Tires

Maxxis Metropass AT tires redefine all-terrain performance with tubeless readiness, fast-rolling tread, and a four-season rubber compound for all-weather grip. Built with a puncture-proof insert and reflective sidewalls for enhanced safety.

  • Front: 29" x 2.4"
  • Rear: 27.5" x 2.4"

E-50 certified for e-bike use.

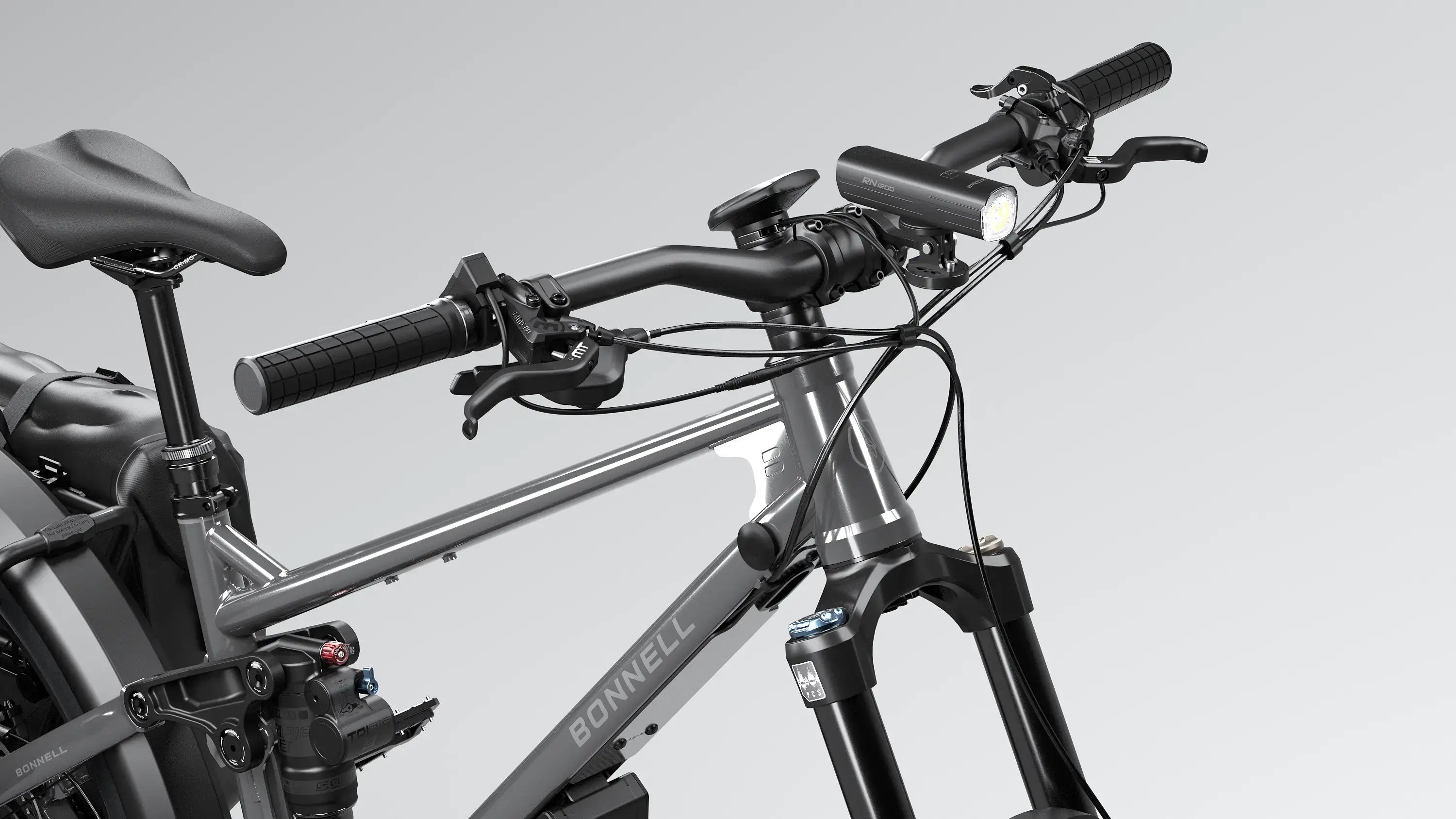

Front Light

The Magicshine Ray 1600B delivers up to 1600 lumens for superior night visibility. With a 12-hour max runtime, USB-C charging, and power bank functionality, it’s built for long rides. IPX6 waterproof and shock-resistant, it uses a Garmin-style mount for easy handlebar installation, compatible with GoPro accessories.

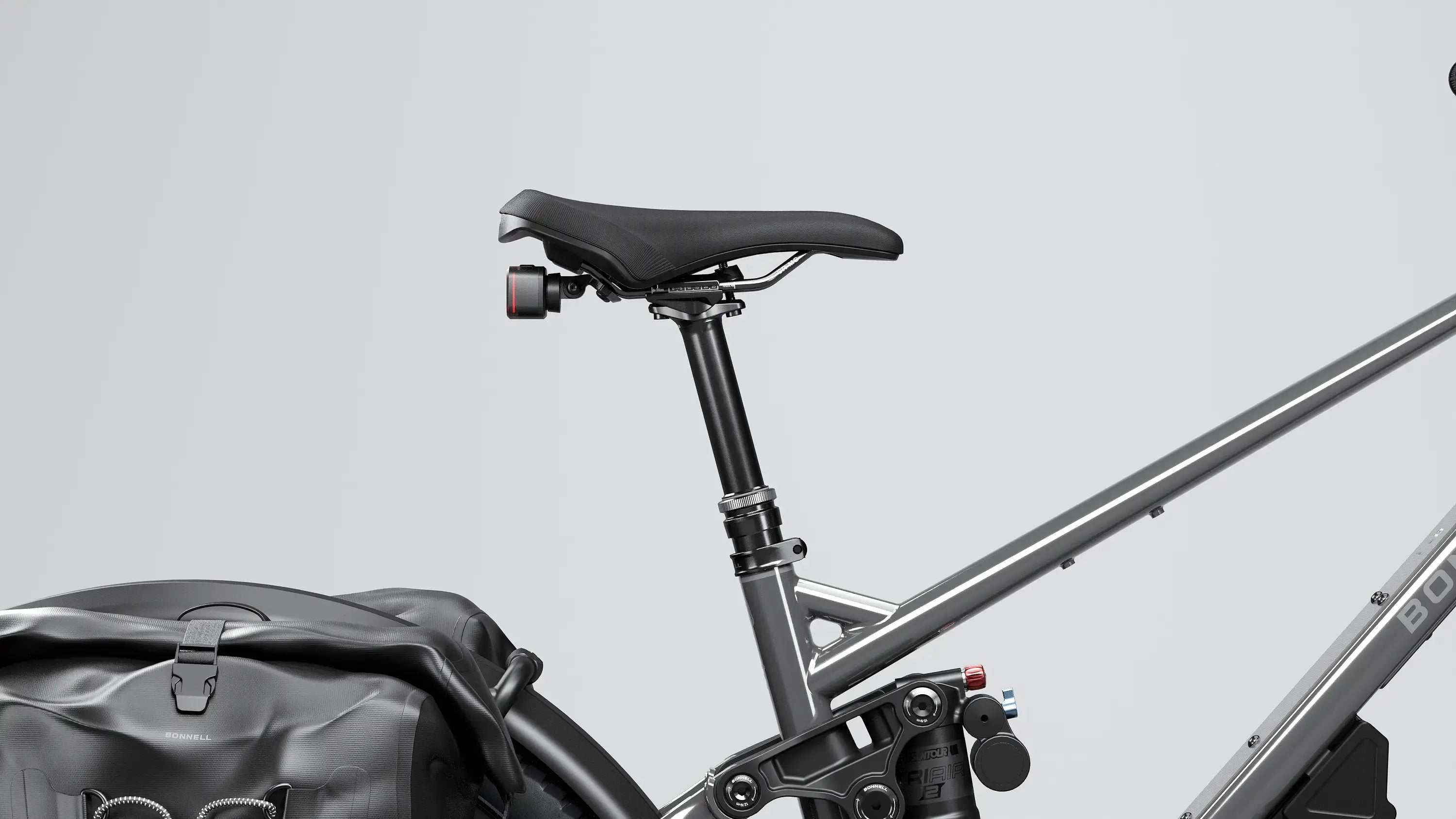

Rear Light

The Magicshine Seemee150 rear light offers 260° visibility with a 150-lumen max output for enhanced safety. Featuring motion, brake, and ambient light sensors, it auto-adjusts for optimal visibility. IPX6 waterproof with a durable seat rail mount, it pairs seamlessly with dropper posts for a clean, secure fit.

Components Highlight

Bonnell Ride Control App

Bonnell Ride Control App

The Bonnell Ride Control App offers extensive customization for your riding experience. Connecting via Bluetooth® to your bike allows for a wide range of settings that can be tailored specifically to your preferences. A standout feature is the ability to fully customize the factory set power modes, allowing you to tune each one for different conditions and tailor to your needs.

Beyond power modes, you can also fine-tune pedal assist levels, helping you customize the motor’s assistance while pedaling. This is ideal for riders who want to push themselves or for beginners finding their comfort zone. Additionally, the app lets you control power delivery settings in both the torque sensor and throttle —offering flexibility in how you ride.

The built-in dashboard tracks key metrics like speed, distance, battery life, component temperatures and more, making it easy to monitor progress or set personal goals. Overall, the Bonnell Ride Control App is a must-have tool for those wanting a personalized and immersive riding experience, featuring a wealth of customization options and seamless navigation.

Compatible with: iPhones and Android devices.

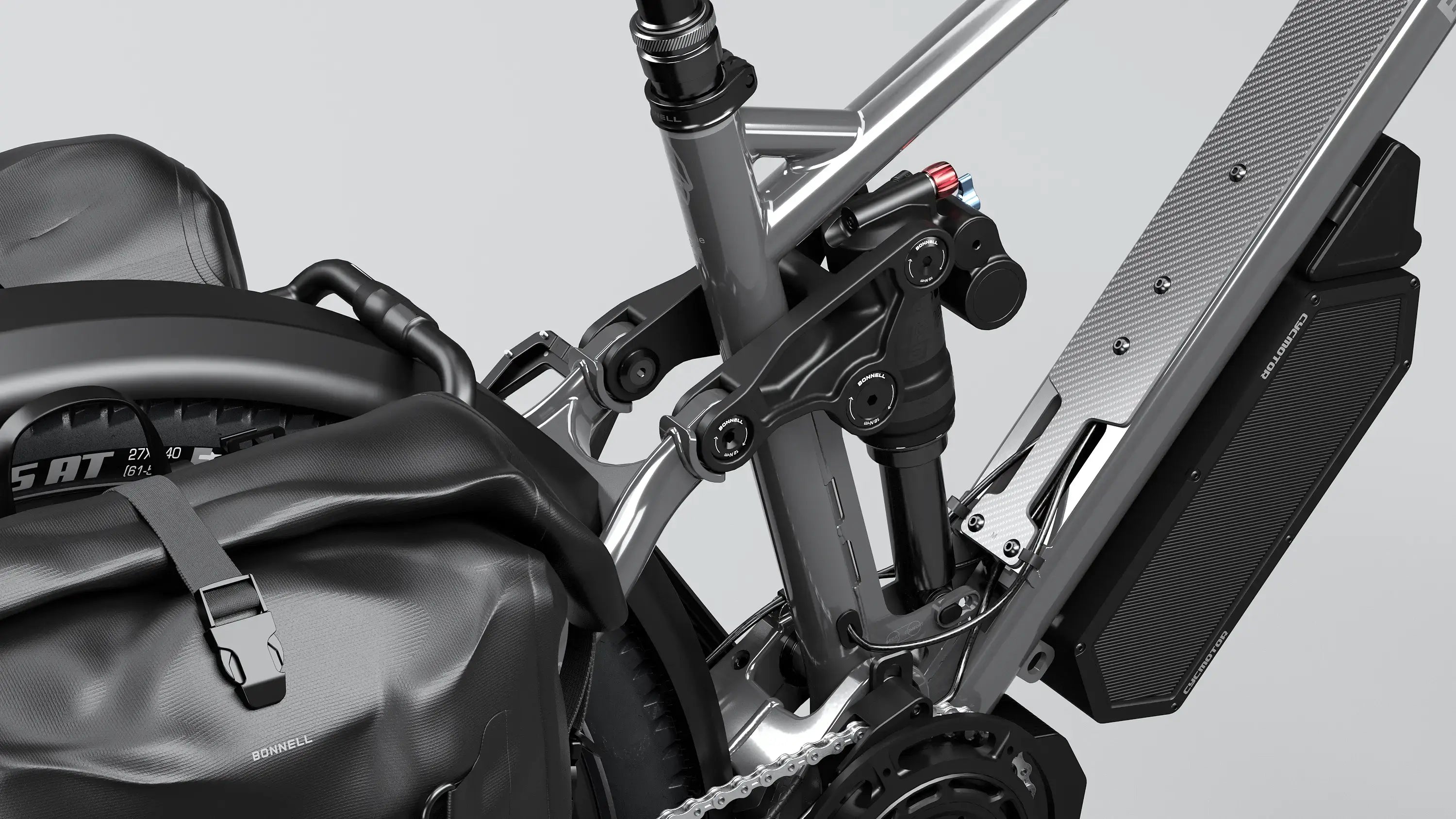

Suntour TriAir 3CR

Suntour TriAir 3CR

The Suntour TriAir 3CR shock features a Trunnion mount design with a custom compression tune crafted specifically for the Bonnell 775 AM. With a three-position compression lever, a rebound knob as well as an adjustable air spring, it’s easily accessible and can be fine-tuned mid-ride to match your weight and riding preferences, giving you the freedom to adapt on the fly.

The lower shock mount provides two settings—"comfort" and "sport"—giving you the flexibility to adapt your ride. The comfort position reduces the shock's progressivity, offering better traction and smooth compliance over small bumps for a more relaxed experience. Switch to the sport position to increase progressivity, delivering more resistance as the shock nears full travel—ideal for tackling large jumps, hitting the bike park, or when you desire more direct feedback from the trail.

Suntour Durolux 36x/38x RC+

Suntour Durolux 36x/38x RC+

Built for all-mountain and enduro riding, this fork combines high performance with easy adjustability. Featuring 36mm aluminum stanchions on S/M sizes and 38mm on L/XL sizes, it delivers a customized feel tailored to each rider’s needs.

Equipped with advanced damper technology, the fork offers precise tuning with adjustable rebound and compression settings, allowing riders to dial in their setup for any trail conditions. With 160mm of travel across all sizes, it provides reliable control and responsiveness on tough terrain.

An integrated fender comes built into the fork, keeping your face clean and your ride protected, so you can focus on the trail ahead.

Magura MT5

Magura MT5

The Magura MT5 is a high-performance hydraulic disc brake system designed for powerful and reliable braking, making it ideal for demanding riding conditions such as enduro and downhill. It features four pistons, providing enhanced braking power and modulation, which ensures precise control and smooth deceleration. The MT5 is paired with MDR-C rotors, with a 220mm front rotor and a 203mm rear rotor, maximizing heat dissipation and maintaining consistent braking performance under high loads.

For added customization, the brake levers can be easily swapped from one side to the other without bleeding the brakes, allowing riders to match their preferred setup effortlessly. At this price point, the MT5 offers exceptional braking power, control, and heat management, making it an outstanding choice for tackling even the toughest trails.

All Components

General

Frame

  • Progressive single pivot linkage driven suspension design, 150mm travel.
  • 4130 chromoly front triangle, twin downtube design, fully ED coated.
  • 6061 Aluminium chainstay, forged yoke, adjustable forged dropouts with 203mm Postmount brake interface.
  • UDH derailleur hanger.
  • 6061 Aluminium seatstays with removable bridge and forged bearing eyelets
  • Forged rocker arm
  • Full complement stainless steel sealed bearing, marine grease
  • Double sealed suspension pivot system for maximum durability
  • Dual crown fork rating up to 615mm axle to crown
  • Durable powder coating

Rear Suspension

  • Suntour TriAir 3CR Bonnell AM custom tune
  • 3 positions compression lever and rebound adjuster
  • Trunnion 205*60mm. 25*8mm lower shock mount

Headset

  • Tapered ZS44 top
  • ZS56 bottom sealed bearings

Fork

  • Suntour Durolux 36X RC+ on S&M, Durolux 38X RC+ on M&L, E-bike rated, tapered 1"1/8-1.5", 29"
  • 160mm travel
  • 40 mm offset
  • 15*110 Boost with tooled axle
  • Short integrated fender included.

E-System

Drive Unit

CYC Photon

Chainring

CYC steel narrow wide 34T

Bashguard

CYC Heavy duty 6061T6 aluminium MTB bash ring 34-36T compatible

Battery

CYC A-Series quick connect 520Wh or 780Wh

Charger

CYC 4A charger

Display

CYC Intuition integrated smart display

Throttle

Thumb throttle

Drivetrain

Rear Derailleur

Tektro RD-M5100, 10speed, with clutch

Shifters

Tektro SL-M5000-10R, 10 speed

Rear Cogs

Microshift 10speed cassette CS-EH104 11-48T for e-bike

Chain

BKMC e10sport , EPT (anti rust)

Crank

CYC forged, 165mm

Chainguide

BONNELL guide compatible with 34-38T chainring

Brakes

Brakes

Magura MT5, 4pistons, MDR-C 220F/203R rotors

Brakes Levers

2-finger aluminum light weight lever blade, flip flop design allows for regular or moto setup

Adjustment

Chainstay length can be set at 440mm or 452mm

2 shock positions, comfort and sport mode

Wheels

Front Hub

Alex rims EMP5 15*110 Boost, E-bike hubs sandblasted finish

Rear Hub

Alex rims EMP5 12*148 Boost, E-bike hubs HG steel freehub body, super strong Impel ratchet system, 5 bearings, sandblasted finish

Brake Type

Disc 6 holes

Rims

Alex rims EMP5, E-bike reinforced, 30mm wide rims, tubeless ready, 36 holes, sandblasted finish

Spokes

Stainless Steel, 14g

Tire Size

2.5" front and rear

Wheel Size

27.5" rear, 29" front

Tires

Rear: Maxxis DHR II DD Maxx terra tubeless ready 2.5

Front : Maxxis Assegai DD Maxx grip tubeless ready 2.5

Tubes

Maxxis welter weight 2.5

Components

Handlebar

Bonnell 780mm, 31.8mm 35mm rise (small/medium) 50mm rise (large/XL) 9deg backsweep, black stealth finish

Stem

Bonnell forged, 45mm long, 31.8mm clamp, black stealth finish

Stem spacers

5*5mm spacers included for height adjustement

Grips

Bonnell single clamp black stealth finish, tacky rubber, ergonomic and grippy pattern. Integrated bar plug (closed end), 30mm diameter on small/medium , 32mm diameter on large/XL

Saddle

Bonnell, by Velo, short nose, reinforced sides, cromoly rails, "I-carry" transport handle.

Seatpost lever

Tranz-X J22.2 thumb trottle compatible lever

Seat Clamp

Bonnell 34.9 black stealth single bolt

Seatpost

Tranz-X 30.9mm, 2 bolt saddle clamp, 7075 aluminium , hard anodized. Adjustable drop 140-170mm on S/M and 170-200mm on L/XL.

Connectivity

Wheel Sensor

CYC Bluetooth speed sensor.

Extra

Pedals

Bonnell flat pedals aluminium, 110*98mm platform size, 17mm thick, sealed bearing and bushing contruction.

Tubeless valves

2 valves included in box

Multi tool

Bonnell 13 functions multi tool

Suspension

Shock pump

Safety Information

Ingestion Hazard

WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Details

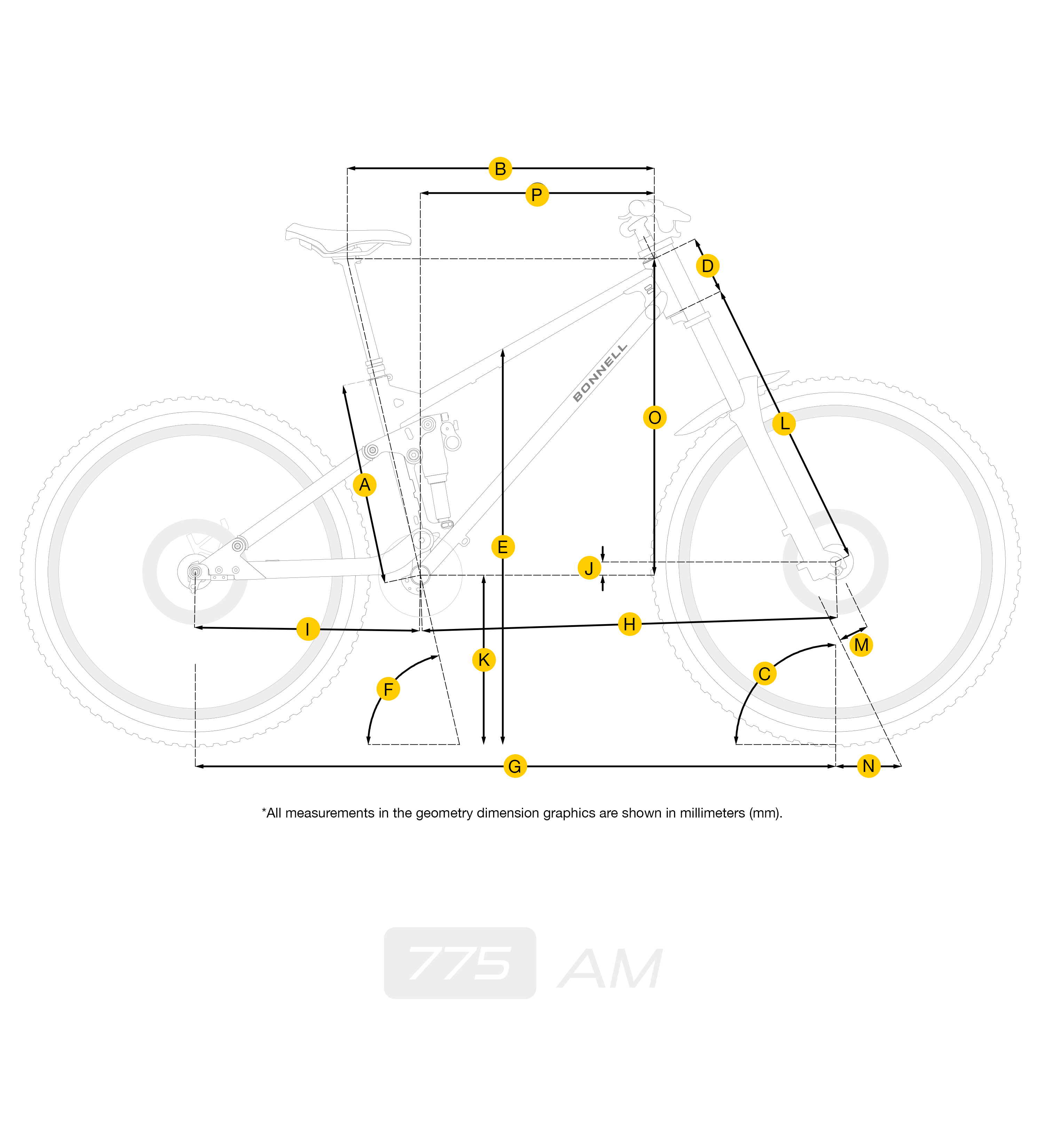

Geometry & dimensions
Basic Geometry
Measurement S M L XL
A Seat Tube Length 380 405 430 460
B Top Tube Horizontal 589 618 638 667
C Head Tube Angle ° 64 64 64 64
D Seat Tube Angle Effective ° 77 76.9 77.2 77.3
E Standover 792 791 790 788
F Head Tube Length 108 117 127 137
G Wheelbase 1227 1257 1293 1325
H Front Center 787 817 841 873
I Chain Stay Length 440 440 452 452
J Bottom Bracket Drop 25 25 25 25
K Bottom Bracket Height 350 350 350 350
L Fork Axle to Crown 580 580 580 580
M Fork Rake 44 44 44 44
N Trail 131 131 131 131
O Stack 627 636 645 654
P Reach 445 470 492 520

What's in the box

The 775 AM Touring: COMMUTE. CONNECT. DISCOVER. (minimal assembly required)

  • Battery & Charger
  • Multi-Tool Kit
  • Shock Pump
  • Waterproof Dual Bags
  • Front & Rear Fenders
  • Heavy-Duty Rear Rack
  • Magic Shine Lights
  • Kickstand & Bell
  • Maxxis Metropass AT Tires

Get to know the Bonnell 775 AM Touring

Production Variations
We aim to ensure complete accuracy in our technical specifications. However, these specifications may change without prior notice. Any differences between the listed information and the actual product specifications do not entitle customers to request changes, modifications, or exchanges for products affected by such variations. For additional information, please feel free to contact our Bonnell Service Team.
