Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
  • Bonnell 775 MX
Bonnell 775 MX

Bonnell 775 MX

$5,495.00 USD
Size: M
Color: Amethyst
Height (cm) Frame Size (Reach)
M
455		 L
477		 XL
505		 Height (ft)
202.5 6'8"
200 6'7"
197.5 6'6"
195 6'5"
190 6'4"
187.5 6'3"
185 6'2"
182.5 6'1"
180 5'11"
177.5 5'10"
175 5'9"
172.5 5'8"
170 5'7"
167.5 5'6"
165 5'5"

For extremely tight and technical trails

Ideal for riders with a BMX background, those with high hip mobility, or individuals with shorter torsos or arms relative to their height.

Playful

Choose this direction if you prioritize playfulness.

Neutral feel

This is the rider height the bike is optimized for.

Stable

Choose this direction if you prioritize stability.

For higher speeds, racing, and maximum stability.

Best suited for riders seeking a secure feel, those with reduced mobility, or individuals with longer torsos or arms relative to their height.
Estimated Lead Time Delivery: Feb 2026

A New Breed

Meet your off-road sidekick: a powerhouse that fuses the nimble precision of a downhill mountain bike with the raw power of a lightweight dirt bike. It's ready for full-on trail domination yet light enough for hassle-free transport. Whether you're a weekend warrior or a seasoned shredder, this ride delivers unparalleled off-road excitement and redefines what's possible on two wheels.

Overview

Intended use: Off-road
Front travel: 200
Rear travel: 170
Weight: 75 lbs [34kgs]
Range: 12-37 mi [20-60 km]

Maximum Power, Maximum Fun: The 775 MX Motor

Dial in your ride: cruise effortlessly with low power and pedal assist as an e-MTB, or ramp things up for impressive speed and performance as an e-Moto. With 6000 watts of power and 280 Nm of torque, it's built to smoothly transition from easy-going to high-adrenaline in a flash.

Maximum Power, Maximum Fun: The MX Motor

The 775 MX takes your ride to thrilling new heights. Whether you’re carving trails as an electric mountain bike or tearing up the track like a lightweight dirt bike, this motor brings serious versatility and fun. From navigating steep climbs to racing off-road, the 775 MX delivers all the power you need.

With the CYC X1 Pro Gen 4 Motor at its core, you get a staggering 280 Nm of torque and 6,000 watts of peak power at the crank—meaning you’re always ready to conquer any terrain.

When using pedal assist, the integrated torque sensor seamlessly adapts to your input, making power delivery smooth and responsive.

Lightweight yet incredibly powerful, the 775 MX offers an unparalleled off-road experience, whether you’re cruising, climbing, or pushing the limits of what’s possible.

Ride responsibly and within your own capabilities, and make sure you brush up on your local laws, rules, and regulations for riding with this power.

Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

Elevate Your Ride: Intuition Display

Introducing the Intuition Display – a sleek, powerful, and ultra-responsive interface that puts control and real-time performance data right at your fingertips. Designed to connect seamlessly with your bike, it takes your riding experience to the next level.

Precision Meets Intuitive Design

At the heart of the Bonnell Intuition Display is a cutting-edge interface designed to anticipate and adapt to your every move. It provides real-time insights into speed, battery life, performance data and ride modes, giving you all the information you need at a glance. But it’s more than just a display—it’s your co-pilot, helping you ride smarter with on-the-fly adjustments that elevate your experience and keep you confidently in control.

Equipped with a built-in AirTag that seamlessly integrates with Apple devices, you can track your bike anytime, anywhere for added peace of mind.

Power Packed: The MX Battery

Optimized to bring out the motor’s full potential, the A65-series battery offers the versatility to prioritize either maximum power or maximum range, adapting to your riding style. Built for endurance, the A65 series provides unmatched performance, making it the ideal choice for those who love to explore without limits.

Power Packed: The MX Battery

The Bonnell 775 MX is equipped with a powerful 65V, 1300Wh battery pack that’s built for reliable performance, letting you ride longer, explore further, and tackle any terrain with confidence.

Encased in lightweight, durable aluminum for excellent heat dissipation, the A65-series battery is designed with safety as a top priority. It features an advanced dual-layer Battery Management System (BMS) that monitors charge cycles, temperature, and current to prevent overheating, overcharging, or electrical issues.

Powered by high-performance Samsung 50s cells, this battery delivers exceptional energy efficiency. When it’s time for a recharge, the battery reaches full power in under four hours and can also be easily swapped with a spare to keep your adventure going without delay.

Backed by a one-year warranty, the Bonnell 775 MX battery is crafted to keep you moving, wherever the trail takes you.

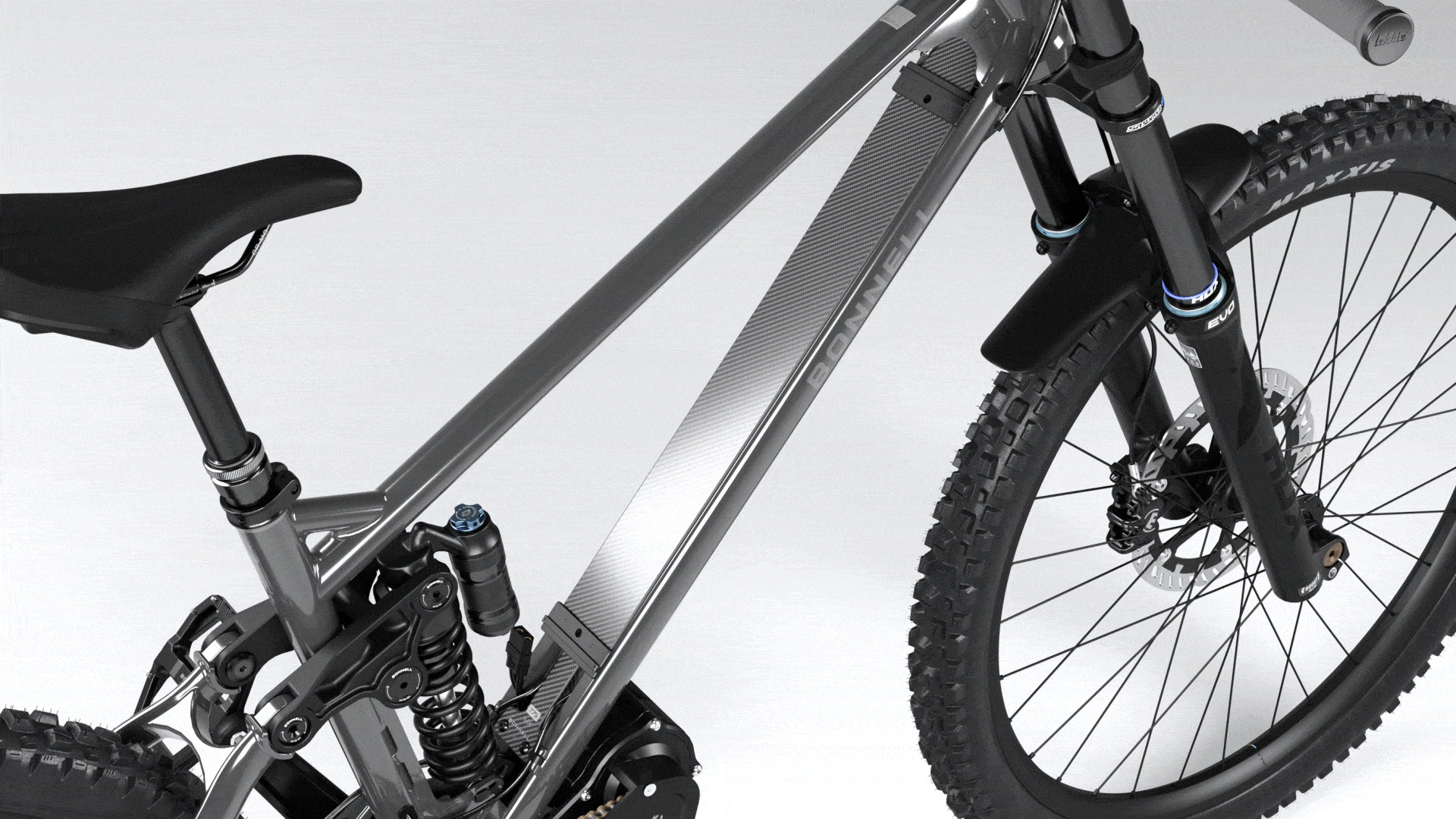

Engineered for Durability: The 775 Frame

The 775 MX boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Rux 38 RC+ fork and Suntour Voro Coil, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.

Components Highlight

Lekkie Pacemaker Twist Throttle

Lekkie Pacemaker Twist Throttle + Grips

Crafted with a soft rubber compound, these grips are designed to maximize rider comfort and ensure a secure grip in any conditions. Engineered to withstand impacts and drops, each grip features a full plastic end cap to protect the throttle and maintain functionality, even after intense rides. The durable lock-on design makes for quick replacements, while the low-profile, sleek construction offers a streamlined feel and a confident hold on every trail.

Bonnell Ride Control App

Bonnell Ride Control App

The Bonnell Ride Control App offers extensive customization for your riding experience. Connecting via Bluetooth® to your bike allows for a wide range of settings that can be tailored specifically to your preferences. A standout feature is the ability to fully customize the factory set power modes, allowing you to tune each one for different conditions and tailor to your needs.

Beyond power modes, you can also fine-tune pedal assist levels, helping you customize the motor’s assistance while pedaling. This is ideal for riders who want to push themselves or for beginners finding their comfort zone. Additionally, the app lets you control power delivery settings in both the torque sensor and throttle —offering flexibility in how you ride.

The built-in dashboard tracks key metrics like speed, distance, battery life, component temperatures and more, making it easy to monitor progress or set personal goals. Overall, the Bonnell Ride Control App is a must-have tool for those wanting a personalized and immersive riding experience, featuring a wealth of customization options and seamless navigation.

Compatible with: iPhones and Android devices.

Suntour Voro Coil

Suntour Voro Coil

The Suntour Voro Coil shock brings a supple, grounded feel to the Bonnell 775 MX with a trunnion mount design and a 205x65mm spec, meaning 205mm eye-to-eye with 65mm of stroke for controlled, deliberate suspension travel built for aggressive riding.

The Voro Coil is a nuanced, dialed-in setup. Compression damping is controlled via a five-position blue knob on the top of the shock, allowing for fine-tuned low-speed compression adjustment depending on trail conditions and rider style. A red knob at the bottom offers low-speed rebound adjustment, helping you control how quickly the shock returns after absorbing an impact.

Coil shocks naturally offer a more linear and planted ride feel, ideal for riders who want maximum sensitivity off the top and consistent support through the stroke. We’ve matched spring rates to frame size for optimal performance out of the box:

Medium: 450 lb spring
Large: 500 lb spring
X-Large: 550 lb spring

Designed for durability, sensitivity, and confidence at speed, the Voro Coil is ready to handle serious terrain with minimal fuss.

Suntour Rux 38 RC+

Suntour Rux 38 RC+

Engineered for high-performance downhill front suspension is built to handle the toughest trails with ease. Featuring robust 38mm aluminum stanchions, it offers exceptional stiffness and stability without added weight. With 200mm of travel, it provides superior shock absorption on steep descents and technical terrain, while the RC+ damper offers precise tuning with adjustable rebound and compression settings, allowing riders to customize their setup for any trail conditions.

Equipped with a Boost 20x110mm thru-axle, the fork enhances wheel stiffness and supports wider hub spacing, delivering improved performance over rugged terrain. An integrated short fender adds extra protection, shielding the stanchions and seals from dirt and debris to ensure long-lasting reliability.

Magura MT5

Magura MT5

The Magura MT5 is a high-performance hydraulic disc brake system designed for powerful and reliable braking, making it ideal for demanding riding conditions such as enduro and downhill. It features four pistons, providing enhanced braking power and modulation, which ensures precise control and smooth deceleration. The MT5 is paired with MDR-P floating rotors, with a 220mm front rotor and a 203mm rear rotor, maximizing heat dissipation and maintaining consistent braking performance under high loads.

This braking system provides consistent, powerful stopping power with excellent heat management, making it a preferred choice for aggressive riders tackling challenging trails.

Custom Sprocket

Custom Sprocket

The 775 MX comes standard with a 24T sprocket, balancing speed, power, and control for versatile trail performance. Want to fine-tune your ride? Choose from our specialized sprocket options to match your terrain and riding style.

Sprocket Options at a Glance

  • 24T (Stock): Top speed ~37 mph (~60 km/h). Perfect for all-around trail riding with balanced performance.
  • 22T: Faster top speed ~40 mph (~65 km/h), ideal for mixed terrain with moderate climbs.
  • 26T: Boosts low-end torque for technical climbs, with a top speed of ~34 mph (~55 km/h).
  • 28T: Maximum torque for steep climbs; limited top speed ~31 mph (~50 km/h).

Tips for Choosing

  • Smaller sprockets = Increased overall top speed but reduced low speed torque.
  • Larger sprockets = Increased low speed torque and power but lower overall top speed
  • The fixed-gear design means picking the right sprocket for your typical ride is key.

Upgrade your sprocket and unlock the full potential of the 775 MX

 Learn more

All Components

General

Frame

Platform
Progressive single-pivot, linkage-driven suspension design.
Rear Travel
170mm
Front Triangle
4130 chromoly front triangle with twin downtube design, fully ED-coated.
Chainstay / Dropouts
6061 aluminum chainstay with forged yoke and adjustable forged dropouts.
Brake Mount
203mm Post Mount brake interface.
Derailleur Hanger
UDH derailleur hanger.
Seatstays
6061 aluminum seatstays with removable bridge and forged bearing eyelets.
Rocker Arm
Forged rocker arm.
Bearings
Full complement stainless, sealed bearings packed with marine grease.
Pivot Sealing
Dual-sealed suspension pivots for maximum durability.
Dual Crown Rating
Dual crown fork rated up to 615mm axle-to-crown.
Finish
Durable powder-coated finish.

Rear Suspension

Shock
Suntour Voro Coil (Trunnion)
Shock Size
205 x 65
Compression
5-position low-speed compression adjustment (blue knob).
Rebound
Rebound adjustment (red knob).

Headset

Type
Tapered: ZS44 (top) / ZS56 (bottom), sealed bearings.

Fork

Model
Suntour Rux 38 RC+
Steerer
Tapered 1 1/8"–1.5"
Wheel Size
29"
Travel
200mm
Offset
50mm
Axle
Boost 20 x 110mm thru-axle.
Fender
Short integrated fender included.

E-System

Power & Electronics

Drive Unit
CYC X1 Pro
Chainring
CYC steel narrow-wide 38T
Bashguard
CYC heavy-duty 6061-T6 aluminum MTB bashguard
Battery
CYC A65 Series 1300Wh (approx. 17 lb / 7.6 kg)
Charger
CYC 5A charger
Display
CYC Intuition integrated smart display
Throttle
Lekkie Pacemaker full-twist throttle

Drivetrain

Drivetrain

Rear Cogs
Single-speed 24T hardened steel narrow-wide sprocket
Chain Tensioner
Bonnell custom CNC chain tensioner with UDH mount, compatible with 22T–28T sprockets
Chain
KMC e1, EPT (anti-rust)
Chainguide
BONNELL upper adjustable chain guide + bottom roller, compatible with 32T–38T chainrings
Crank
CYC forged, 155mm (shorter for improved ground clearance and fewer pedal strikes)

Brakes

Brakes

Brakes
Magura MT5, 4-piston, MDR-P floating rotors (220mm front / 203mm rear). Brakes are set up moto-style.
Brake Levers
2-finger lightweight aluminum lever blade. Flip-flop design allows for standard or moto-style setup.

Adjustment

Adjustments

Chainstay Length
Adjustable chainstay length: 440mm or 452mm
Shock Mount Positions
Two shock positions: Comfort and Sport modes

Wheels

Wheels & Tires

Front Hub
Alexrims 20 x 110mm Boost, 36H e-bike hub, sandblasted finish
Rear Hub
BONNELL single-speed sprag clutch hub, 12 x 148mm Boost, 36H. Symmetrical spoke flange design for maximum wheel strength. 6-bolt mount for rear sprocket. Sandblasted finish
Spokes (Rear)
Reinforced rear wheel with thicker 13G stainless steel spokes, updated lacing, and upgraded nipples
Rims
Alexrims EMC 30, e-bike reinforced, 30mm internal width, tubeless-ready, 36H, sandblasted finish. Upgraded front & rear rims for added durability
Brake Type
Disc, 6-bolt
Tire Size
2.5" front and rear
Wheel Size
29" front / 27.5" rear (mullet)
Tires
Front: Maxxis Assegai DH casing, MaxxGrip, tubeless-ready, 2.5"
Rear: Maxxis Assegai DH casing, MaxxGrip, tubeless-ready, 2.5"
Tubes
Maxxis Welter Weight, 2.5"
Rear Flat Protection (Insert)
Tannus Armour insert pre-installed in the rear wheel (flat resistance + rim protection from hard hits)

Components

Cockpit & Seat

Handlebar
Bonnell 780mm wide, 31.8mm clamp, 50mm rise, 9° backsweep, black stealth finish
Stem
Kalloy forged direct-mount stem, 44mm length, 31.8mm clamp, black stealth finish. One stem spacer included
Grips
Lekkie single lock-on grip / full-twist throttle, soft rubber, black
Saddle
Bonnell by Velo, short-nose saddle with reinforced sides, chromoly rails, “I-carry” transport handle
Seat Clamp
Bonnell 34.9mm single-bolt seat clamp, black stealth finish
Seatpost
Tranz-X 30.9mm dropper post, 2-bolt saddle clamp, 7075 aluminum, hard-anodized. Adjustable travel: 140–170mm (M), 170–200mm (L/XL)
Seatpost Lever
Tranz-X GL 1x lever

Connectivity

Sensors

Wheel Sensor
CYC Bluetooth speed sensor

Extra

Extra

Pedals
Bonnell aluminum flat pedals, 110 × 98mm platform, 17mm thick, sealed bearing + bushing construction
Tubeless Valves
2 tubeless valves included in the box
Multi Tool
Bonnell 13-function multi tool
Suspension
Shock pump

Safety Information

Ingestion Hazard

WARNING
INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause internal chemical burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Details

Geometry & dimensions
Basic Geometry
Measurement M L XL
A Seat Tube Length 405 430 460
B Top Tube Horizontal 621 645 676
C Head Tube Angle ° 62.7 62.7 62.7
D Seat Tube Effective Angle ° 75.1 75.5 75.6
E Standover 816 830 835
F Head Tube Length 117 127 137
G Wheelbase 1277 1316 1348
H Front Center 837 864 896
I Chain Stay Length 440 452 452
J Bottom Bracket Drop 15 15 15
K Bottom Bracket Height 355 355 355
L Fork Axle to Crown 615 615 615
M Fork Rake 50 50 50
N Trail 134 134 134
O Stack 646 655 665
P Reach 455 478 505

What's in the box

The 775 MX: A New Breed - minimal assembly required.

  • Battery & Charger: Power up your ride with the included high-capacity battery and charger.
  • Multi-Tool Kit: Compact but powerful, this kit has everything you need for quick adjustments on the go.
  • Shock Pump: Easily set and fine-tune your suspension for smooth, epic rides every time.

Get to know the Bonnell 775 MX

775 MX Specs Explained

Discover a New Breed

POV Downhill

775 MX / 775 AM Comparison

Production Variations
We aim to ensure complete accuracy in our technical specifications. However, these specifications may change without prior notice. Any differences between the listed information and the actual product specifications do not entitle customers to request changes, modifications, or exchanges for products affected by such variations. For additional information, please feel free to contact our Bonnell Service Team.
